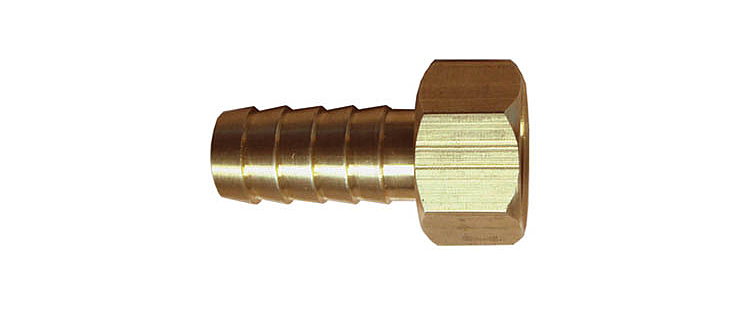

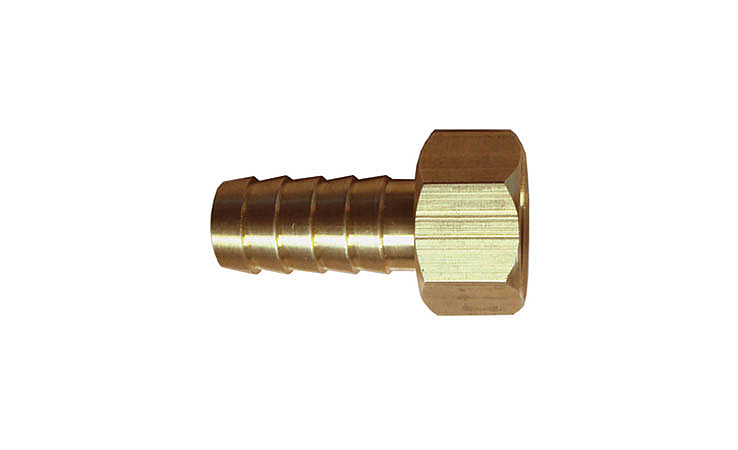

1/3 Schlauchverschraubung IG
- Brass hose fittings with Whitworth inch thread. Suitable for all common connections in the garden.
- Applications: simple, robust connection fitting for outlet valves valves, apparatus or pumps
Material
- Brass
_empty_
- 16920.JPG
important advices
For proper use of our products please note
Interesting facts about hoses
Interesting facts about hoses
All technical Data are according to ISO-Standard and at 20 °C ambient and medium temperature, technical changes reserved.
Technical specifications
1/3 Schlauchverschraubung IG
| Nr. | Female Thread | Femal Thread in inch | For Hose in mm | For Hoses in inch | Key-wide in mm | Packing Unit |
|---|---|---|---|---|---|---|
| 16921 | 15,39 | 3/8" | 13 | 1/2" | 19 | 10 |
| 16920 | 15,39 | 3/8" | 10 | 3/8" | 19 | 10 |
| 116920 | 15,39 | 3/8" | 10 | 3/8" | 19 | 10 |
| 116921 | 15,39 | 3/8" | 13 | 1/2" | 19 | 10 |
| 16922 | 19,17 | 1/2" | 13 | 1/2" | 24 | 10 |
| 16923 | 19,17 | 1/2" | 19 | 3/4" | 24 | 10 |
| 116922 | 19,17 | 1/2" | 13 | 1/2" | 24 | 10 |
| 116923 | 19,17 | 1/2" | 19 | 3/4" | 24 | 10 |
| 16925 | 24,66 | 3/4" | 16 | 5/8" | 28 | 10 |
| 116926 | 24,66 | 3/4" | 19 | 3/4" | 28 | 10 |
| 116924 | 24,66 | 3/4" | 13 | 1/2" | 28 | 10 |
| 116925 | 24,66 | 3/4" | 16 | 5/8" | 28 | 10 |
| 16924 | 24,66 | 3/4" | 13 | 1/2" | 28 | 10 |
| 16926 | 24,66 | 3/4" | 19 | 3/4" | 28 | 10 |
| 116928 | 39,59 | 1" | 19 | 3/4" | 37 | 10 |
| 116927 | 39,59 | 1" | 13 | 1/2" | 37 | 10 |
| 116929 | 39,59 | 1" | 25 | 1" | 37 | 10 |
