1/3 Verschraubung Swiss
- Brass and conduit fitting programme specifically for the Swiss market.
- Applications: extra solid versions especially for the Swiss market
Seal
- NBR
Material
- Brass
_empty_

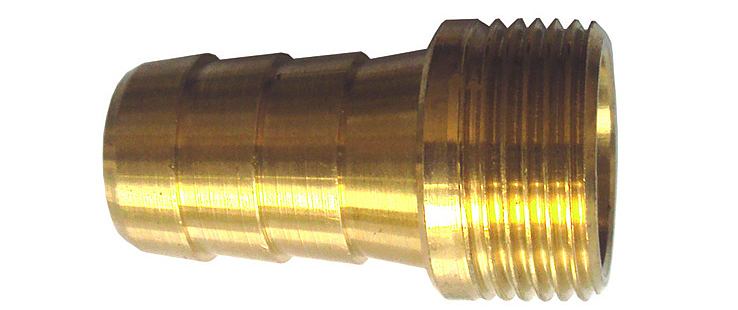

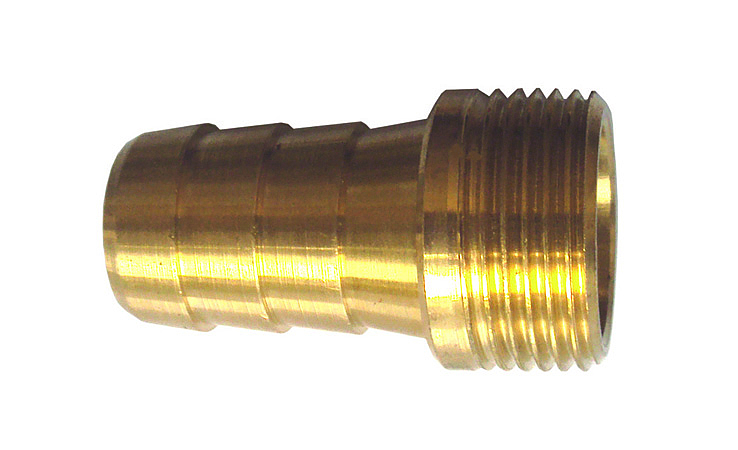

- 115008.JPG
important advices
For proper use of our products please note
Interesting facts about hoses
Interesting facts about hoses
All technical Data are according to ISO-Standard and at 20 °C ambient and medium temperature, technical changes reserved.
Technical specifications
1/3 Verschraubung Swiss
| Nr. | Male Thread | Male Thread in inch | For Hose in mm | For Hoses in inch | Packing Unit |
|---|---|---|---|---|---|
| 115008 | 20,95 | 1/2" | 13 | 1/2" | 10 |
| 115009 | 20,95 | 1/2" | 16 | 5/8" | 10 |
| 115012 | 26,44 | 3/4" | 19 | 3/4" | 10 |
| 115011 | 26,44 | 3/4" | 16 | 5/8" | 10 |
| 115010 | 26,44 | 3/4" | 13 | 1/2" | 10 |
| 115015 | 33,25 | 1" | 25 | 1" | 10 |
| 115013 | 33,25 | 1" | 16 | 5/8" | 10 |
| 115014 | 33,25 | 1" | 19 | 3/4" | 10 |
