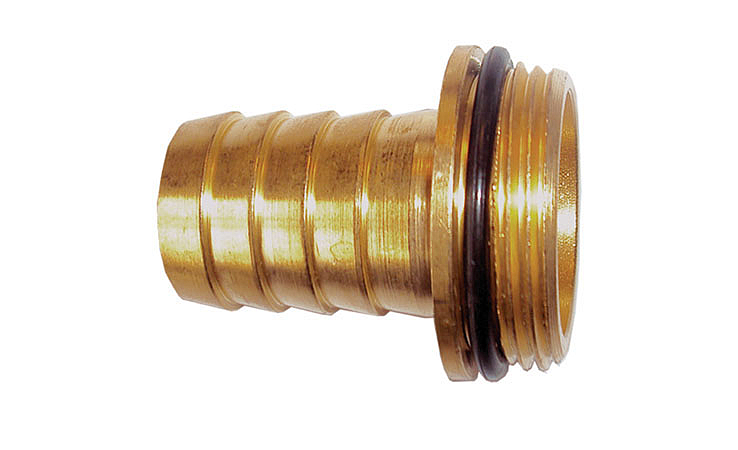

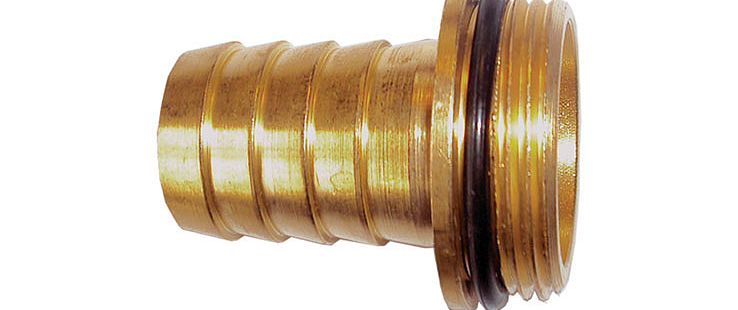

APD 1/3-Verschraubung m. Bund und O-Ring
- Brass hose fittings with Whitworth inch thread. Suitable for all common connections in the garden.
- Applications: simple, robust connection fitting for outlet valves valves, apparatus or pumps
Seal
- NBR
Material
- Brass
_empty_
- 116136.JPG
important advices
For proper use of our products please note
Interesting facts about hoses
Interesting facts about hoses
All technical Data are according to ISO-Standard and at 20 °C ambient and medium temperature, technical changes reserved.
Technical specifications
APD 1/3-Verschraubung m. Bund und O-Ring
| Nr. | Male Thread | Male Thread in inch | For Hose in mm | For Hoses in inch | Packing Unit |
|---|---|---|---|---|---|
| 116136 | 20,95 | 1/2" | 13 | 1/2" | 10 |
| 16136 | 20,95 | 1/2" | 13 | 1/2" | 10 |
| 116140 | 26,44 | 3/4" | 19 | 3/4" | 10 |
| 16137 | 26,44 | 3/4" | 13 | 1/2" | 10 |
| 116137 | 26,44 | 3/4" | 13 | 1/2" | 10 |
| 16140 | 26,44 | 3/4" | 19 | 3/4" | 10 |
| 116141 | 33,25 | 1" | 25 | 1" | 10 |
| 116138 | 33,25 | 1" | 19 | 3/4" | 10 |
| 16138 | 33,25 | 1" | 19 | 3/4" | 10 |
| 16141 | 33,25 | 1" | 25 | 1" | 10 |
| 16139 | 41,91 | 1 1/4" | 25 | 1" | 10 |
| 116142 | 41,91 | 1 1/4" | 32 | 1 1/4" | 10 |
| 116139 | 41,91 | 1 1/4" | 25 | 1" | 10 |
| 16142 | 41,91 | 1 1/4" | 32 | 1 1/4" | 10 |
| 16292 | 47,8 | 1 1/2" | 38 | 1 1/2" | 10 |
| 16143 | 47,8 | 1 1/2" | 32 | 1 1/4" | 10 |
| 116292 | 47,8 | 1 1/2" | 38 | 1 1/2" | 10 |
| 116143 | 47,8 | 1 1/2" | 32 | 1 1/4" | 10 |
