APD 3/3-Verschraubung

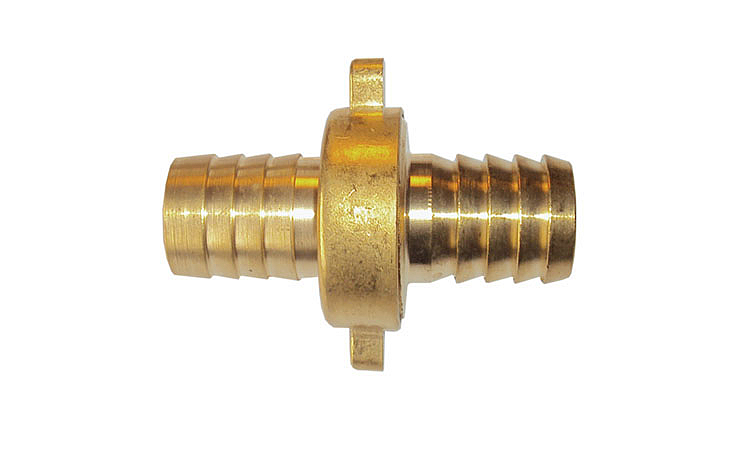

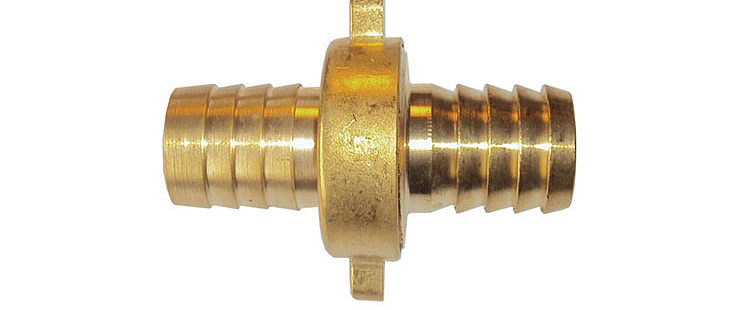

- Brass hose fittings with Whitworth inch thread. Suitable for all common connections in the garden.
- Applications: simple, robust connection fitting for outlet valves valves, apparatus or pumps
Seal
- NBR
Material
- Brass
_empty_
- 116080.JPG
important advices
For proper use of our products please note
Interesting facts about hoses
Interesting facts about hoses
All technical Data are according to ISO-Standard and at 20 °C ambient and medium temperature, technical changes reserved.
Technical specifications
APD 3/3-Verschraubung
| Nr. | For Hose in mm | For Hoses in inch | Union Nut in mm | Union Nut in inch | Packing Unit |
|---|---|---|---|---|---|
| 16080 | 13 | 1/2" | 24,66 | 3/4" | 10 |
| 116080 | 13 | 1/2" | 24,66 | 3/4" | 10 |
| 16081 | 19 | 3/4" | 30,93 | 1" | 10 |
| 116081 | 19 | 3/4" | 30,93 | 1" | 10 |
| 16082 | 25 | 1" | 39,59 | 1 1/4" | 10 |
| 116082 | 25 | 1" | 39,59 | 1 1/4" | 10 |
