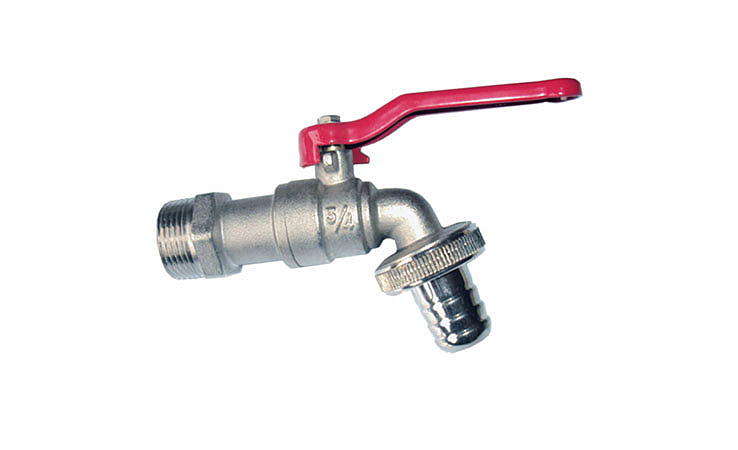

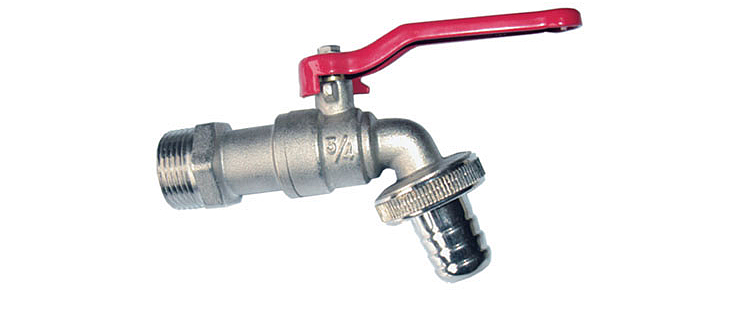

APD Kugelauslaufventil Standard
- Ball outlet valves made of brass, nickel-plated for use in garden and industry (not suitable for drinking water).
Seal
- PTFE
Material
- Brass
_empty_
- 116107.JPG
important advices
For proper use of our products please note
Interesting facts about hoses
Interesting facts about hoses
All technical Data are according to ISO-Standard and at 20 °C ambient and medium temperature, technical changes reserved.
Technical specifications
APD Kugelauslaufventil Standard
| Nr. | Male Thread Outlet | Male Thread Outlet in inch | Male Thread Taper | Male Thread Taper in inch | For Hose Outlet in mm | For Outlet Hose in inch | Packing Unit |
|---|---|---|---|---|---|---|---|
| 16107 | 26,44 | 3/4" | 20,95 | 1/2" | 13 | 1/2" | 10 |
| 116107 | 26,44 | 3/4" | 20,95 | 1/2" | 13 | 1/2" | 10 |
| 16108 | 33,25 | 1" | 26,44 | 3/4" | 19 | 3/4" | 10 |
| 116108 | 33,25 | 1" | 26,44 | 3/4" | 19 | 3/4" | 10 |
| 16319 | 41,91 | 1 1/4" | 33,25 | 1" | 25 | 1" | 5 |
| 116319 | 41,91 | 1 1/4" | 33,25 | 1" | 25 | 1" | 5 |
