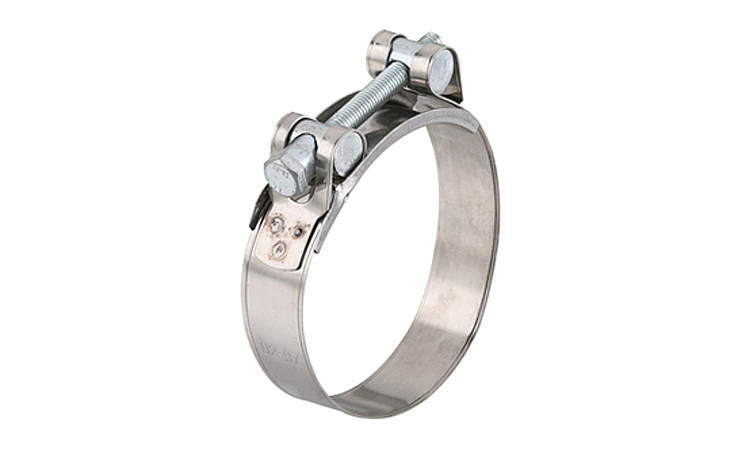

GBS 9404 W4

Data sheet as PDF

SIZE: ~ 100 KB

Download PDF

For proper use of our products please note
Interesting facts about hoses

All technical Data are according to ISO-Standard and at 20 °C ambient and medium temperature, technical changes reserved.

Nr.	Width mm	Clamping Area	Packing Unit
940017019184	18	17 - 19 MM	50
940019021184	18	19 - 21 MM	50
940020022184	18	20 - 22 MM	50
940021023184	18	21 - 23 MM	50
940023025184	18	23 - 25 MM	50
940026028184	18	26 - 28 MM	50
940029031204	20	29 - 31 MM	50
940030033204	20	30 - 33 MM	50
940032035204	20	32 - 35 MM	50
940034037204	20	34 - 37 MM	50
940036039204	20	36 - 39 MM	50
940038041204	20	38 - 41 MM	25
940040043204	20	40 - 43 MM	25
940043046204	20	43 - 46 MM	25
940044047224	22	44 - 47 MM	25
940048051224	22	48 - 51 MM	25
940052055224	22	52 - 55 MM	25
940056059224	22	56 - 59 MM	25
940060063224	22	60 - 63 MM	25
940064067224	22	64 - 67 MM	25
940068073244	24	68 - 73 MM	25
940074079244	24	74 - 79 MM	25
940076080244	24	76 - 80 MM	25
940080085244	24	80 - 85 MM	10
940086091244	24	86 - 91 MM	10
940092097244	24	92 - 97 MM	10
940098103244	24	98 - 103 MM	10
940104112244	24	104 - 112 MM	10
940110118244	24	110 - 118 MM	10
940113121244	24	113 - 121 MM	10
940122130244	24	122 - 130 MM	10
940131139264	26	131 - 139 MM	10
940140148264	26	140 - 148 MM	10
940149161264	26	149 - 161 MM	10
940162174264	26	162 - 174 MM	10
940175187264	26	175 - 187 MM	10
940188200264	26	188 - 200 MM	10
940195210264	26	195 - 210 MM	10
940201213264	26	201 - 213 MM	10
940214226264	26	214 - 226 MM	10
940227239264	26	227 - 239 MM	10
940240252264	26	240 - 252 MM	10
