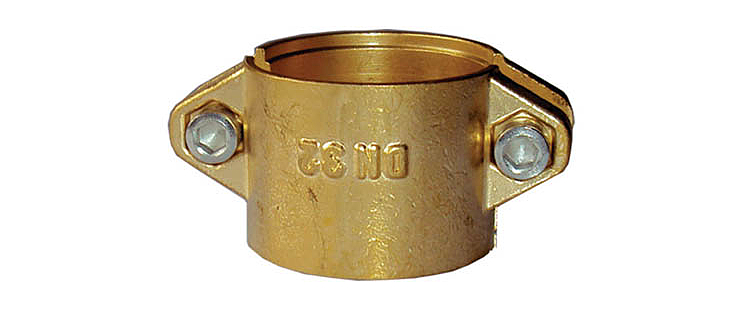

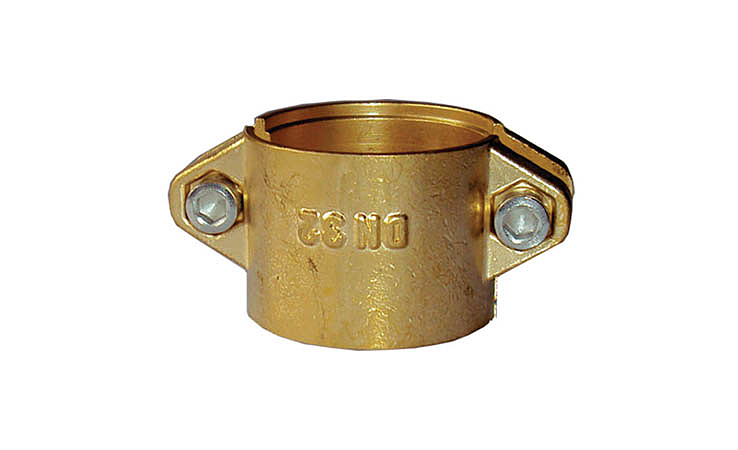

MS-Klemmschalen 2tlg
- Applications: For the integration of spiral hoses
Material
- Brass
Screw
- EDELSTAHL
_empty_
- 16210.JPG
important advices
For proper use of our products please note
Interesting facts about hoses
Interesting facts about hoses
All technical Data are according to ISO-Standard and at 20 °C ambient and medium temperature, technical changes reserved.
Technical specifications
MS-Klemmschalen 2tlg
| Nr. | For Hose in mm | For Hoses in inch | Clamping Area from | Clamping Area till | Packing Unit |
|---|---|---|---|---|---|
| 16210 | 19 | 3/4" | 25 | 27 | 2 |
| 116210 | 19 | 3/4" | 25 | 27 | 2 |
| 16211 | 25 | 1" | 31 | 34 | 2 |
| 116211 | 25 | 1" | 31 | 34 | 2 |
| 16212 | 32 | 1 1/4" | 38 | 41 | 2 |
| 116212 | 32 | 1 1/4" | 38 | 41 | 2 |
