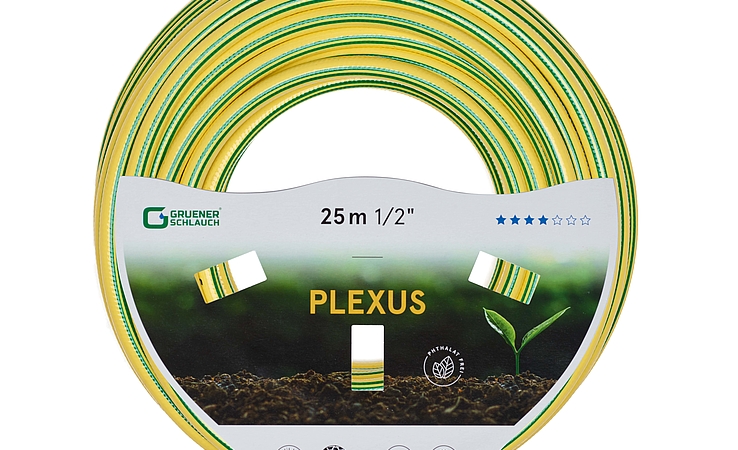

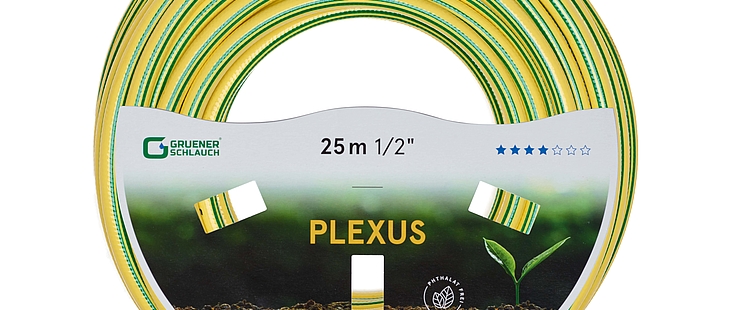

Plexus One
- PVC water hose for pumping fresh and service water and non-aggressive media.
- Very robust and light, light and ozone resistant, abrasion resistant, phthalate free.
Imprint
- with imprint
Durability
- SIEHE WEICH-PVC
Colour
- yellow with orange stripe
Yarn
- Polyester fabric
Food approval
- No
REACH
- conformity to 1907/2006/EC
RoHS
- Conformity to Guideline 2015/863 (RoHs 3)
_empty_
- plexus_one.jpg
Material
- Soft-PVC
important advices
For proper use of our products please note
Interesting facts about hoses
Interesting facts about hoses
All technical Data are according to ISO-Standard and at 20 °C ambient and medium temperature, technical changes reserved.
Technical specifications
Plexus One
| Nr. | Inside Diameter in mm | Outside Diameter in mm | Wall Thickness | Working Pressure bar | Bursting Pressure bar | Length in m | Weight per Piece |
|---|---|---|---|---|---|---|---|
| 826 013 0100 | 12,5 | 17,1 | 2,3 | 10 | 30 | 10 | 1,35 |
| 826 013 0300 | 12,5 | 17,1 | 2,3 | 10 | 30 | 30 | 4,05 |
| 826 013 0500 | 12,5 | 17,1 | 2,3 | 10 | 30 | 50 | 6,8 |
| 826 013 0250 | 12,5 | 17,1 | 2,3 | 10 | 30 | 25 | 3,4 |
| 826 013 0200 | 12,5 | 17,1 | 2,3 | 10 | 30 | 20 | 2,7 |
| 826 019 0500 | 19 | 24,5 | 2,25 | 9 | 27 | 50 | 12 |
| 826 019 0250 | 19 | 24,5 | 2,25 | 9 | 27 | 25 | 6 |
| 826 025 0500 | 25 | 31,6 | 3,3 | 8 | 24 | 50 | 18,5 |
| 826 025 0250 | 25 | 31,6 | 3,3 | 8 | 24 | 25 | 9,25 |
