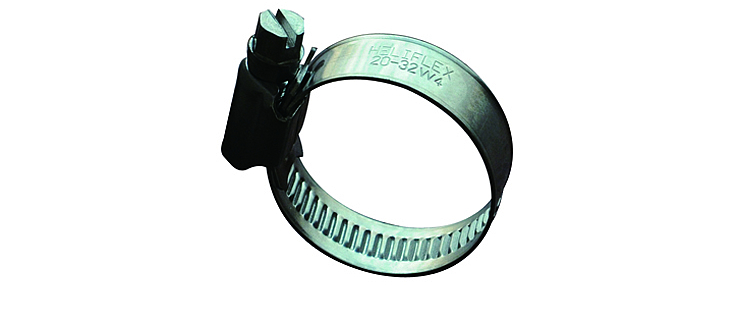

SGS 9504 W4

Material

Stainless Steel 1.4301

Screw

SECHSKANT/KREUZ

_empty_

Data sheet as PDF
SIZE: ~ 100 KB
Download PDF



important advices

For proper use of our products please note
Interesting facts about hoses
All technical Data are according to ISO-Standard and at 20 °C ambient and medium temperature, technical changes reserved.



Technical specifications

SGS 9504 W4

Nr. Width mm Clamping Area from Clamping Area till Packing Unit
950008012094 9 8 12 100
950010016094 9 10 16 100
950012022124 12 12 22 100
950012022094 9 12 22 100
950016025124 12 16 25 100
950016025094 9 16 25 100
950020032124 12 20 32 100
950020032094 9 20 32 100
950025040124 12 25 40 100
950025040094 9 25 40 100
950035050124 12 35 50 50
950035050094 9 35 50 50
950040060094 9 40 60 50
950040060124 12 40 60 50
950050070124 12 50 70 50
950050070094 9 50 70 50
950060080124 12 60 80 25
950060080094 9 60 80 25
950070090124 12 70 90 25
950070090094 9 70 90 25
950080100124 12 80 100 25
950080100094 9 80 100 25
950090110124 12 90 110 25
950090110094 9 90 110 25
950100120124 12 100 120 10
950110130124 12 110 130 10
950120140124 12 120 140 10
950130150124 12 130 150 10
950160180124 12 160 180 10
950190210124 12 190 210 10
