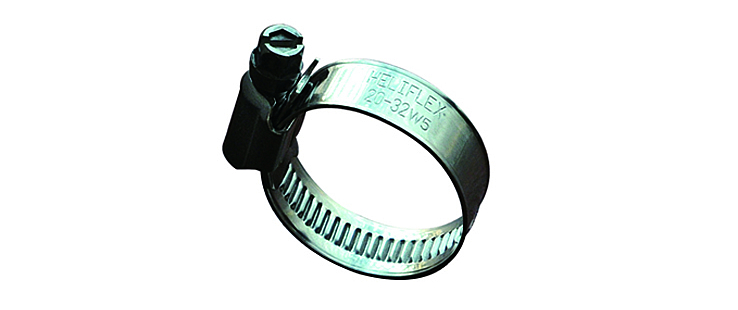

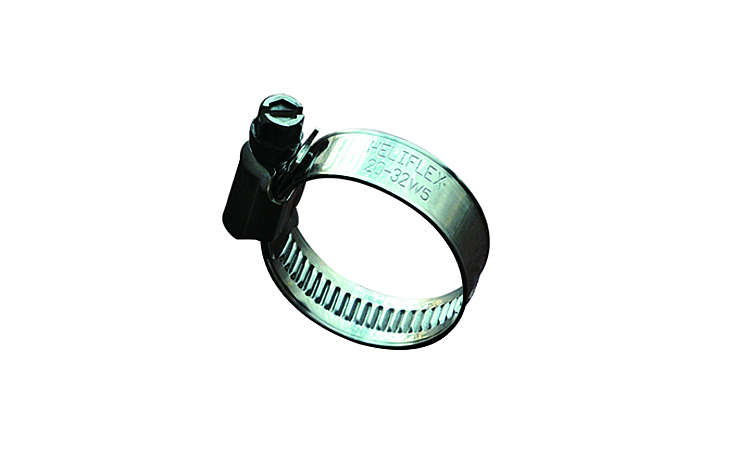

SGS 9505 W5
Material
- Stainless Steel 1.4401
Screw
- SECHSKANT/KREUZ
_empty_
- 9505.JPG
important advices
For proper use of our products please note
Interesting facts about hoses
Interesting facts about hoses
All technical Data are according to ISO-Standard and at 20 °C ambient and medium temperature, technical changes reserved.
Technical specifications
SGS 9505 W5
| Nr. | Width mm | Clamping Area from | Clamping Area till | Packing Unit |
|---|---|---|---|---|
| 950008012095 | 9 | 8 | 12 | 100 |
| 950010016095 | 9 | 10 | 16 | 100 |
| 950012022125 | 12 | 12 | 22 | 100 |
| 950012022095 | 9 | 12 | 22 | 100 |
| 950016025125 | 12 | 16 | 25 | 100 |
| 950016025095 | 9 | 16 | 25 | 100 |
| 950020032125 | 12 | 20 | 32 | 100 |
| 950020032095 | 9 | 20 | 32 | 100 |
| 950025040125 | 12 | 25 | 40 | 100 |
| 950025040095 | 9 | 25 | 40 | 100 |
| 950035050125 | 12 | 35 | 50 | 50 |
| 950035050095 | 9 | 35 | 50 | 50 |
| 950040060095 | 9 | 40 | 60 | 50 |
| 950040060125 | 12 | 40 | 60 | 50 |
| 950050070125 | 12 | 50 | 70 | 50 |
| 950050070095 | 9 | 50 | 70 | 50 |
| 950060080125 | 12 | 60 | 80 | 25 |
| 950060080095 | 9 | 60 | 80 | 25 |
| 950070090125 | 12 | 70 | 90 | 25 |
| 950070090095 | 9 | 70 | 90 | 25 |
| 950080100125 | 12 | 80 | 100 | 25 |
| 950080100095 | 9 | 80 | 100 | 25 |
| 950090110125 | 12 | 90 | 110 | 25 |
| 950090110095 | 9 | 90 | 110 | 25 |
| 950100120125 | 12 | 100 | 120 | 10 |
| 950110130125 | 12 | 110 | 130 | 10 |
| 950120140125 | 12 | 120 | 140 | 10 |
| 950130150125 | 12 | 130 | 150 | 10 |
| 950160180125 | 12 | 160 | 180 | 10 |
| 950190210125 | 12 | 190 | 210 | 10 |
