APDatec 841
Imprint
- with imprint
Durability
- refer to Soft PVC
Colour
- transparent
Food approval
- No
REACH
- conformity to 1907/2006/EC
RoHS
- Conformity to Guideline 2015/863 (RoHs 3)
Material
- Soft-PVC, Oil resistant
_empty_

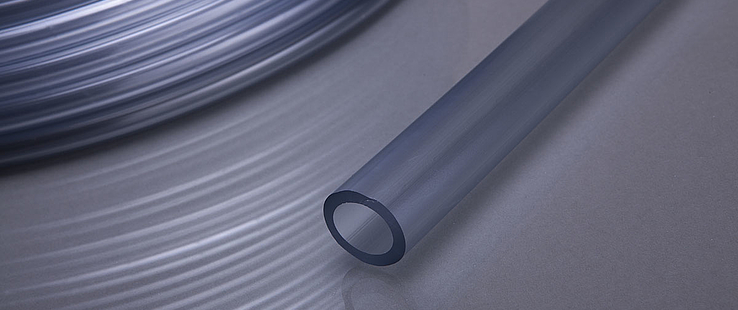

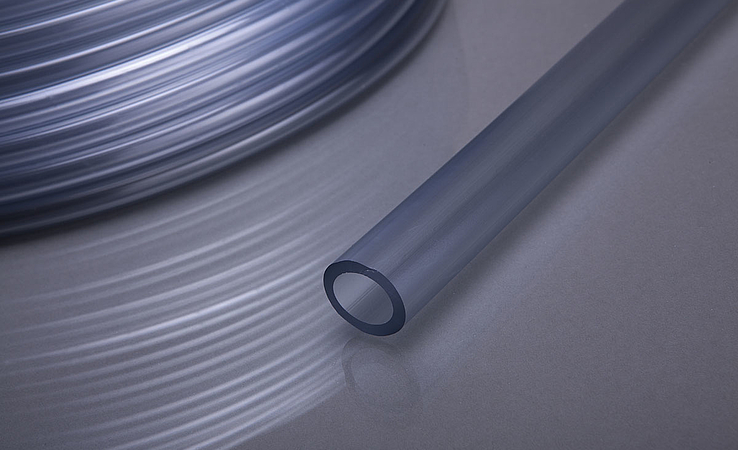

- 841.JPG
important advices
For proper use of our products please note
Interesting facts about hoses
Interesting facts about hoses
All technical Data are according to ISO-Standard and at 20 °C ambient and medium temperature, technical changes reserved.
Technical specifications
APDatec 841
| Nr. | Inside Diameter in mm | Outside Diameter in mm | Wall Thickness | Bursting Pressure bar | Length in m | Weight per Piece |
|---|---|---|---|---|---|---|
| 841 004 20 00 | 4 | 8 | 2 | 10 | 100 | 4,62 |
| 841 004 10 00 | 4 | 6 | 1 | 6,5 | 100 | 1,92 |
| 841 005 20 00 | 5 | 9 | 2 | 10,5 | 100 | 5,39 |
| 841 006 20 00 | 6 | 10 | 2 | 9 | 100 | 6,15 |
| 841 006 30 00 | 6 | 12 | 3 | 12 | 100 | 5,2 |
| 841 008 20 00 | 8 | 12 | 2 | 7 | 50 | 7,7 |
| 841 010 20 50 | 10 | 14 | 2 | 6 | 50 | 4,61 |
| 841 012 20 50 | 12 | 16 | 2 | 5 | 50 | 5,4 |
| 841 013 30 50 | 13 | 19 | 3 | 6,5 | 50 | 9,22 |
| 841 015 30 50 | 15 | 21 | 3 | 6 | 50 | 10,38 |
| 841 016 25 50 | 16 | 21 | 2,5 | 4,5 | 50 | 8,9 |
| 841 019 40 50 | 19 | 27 | 4 | 6,3 | 50 | 17,7 |
| 841 030 45 25 | 30 | 39 | 4,5 | 4,5 | 25 | 14,9 |
